Image Sensor 1/2.7" 5MP PS CMOS (0.9407cm)
Minimum Illumination 0.005Lux/F1.6, 0Lux White Light on

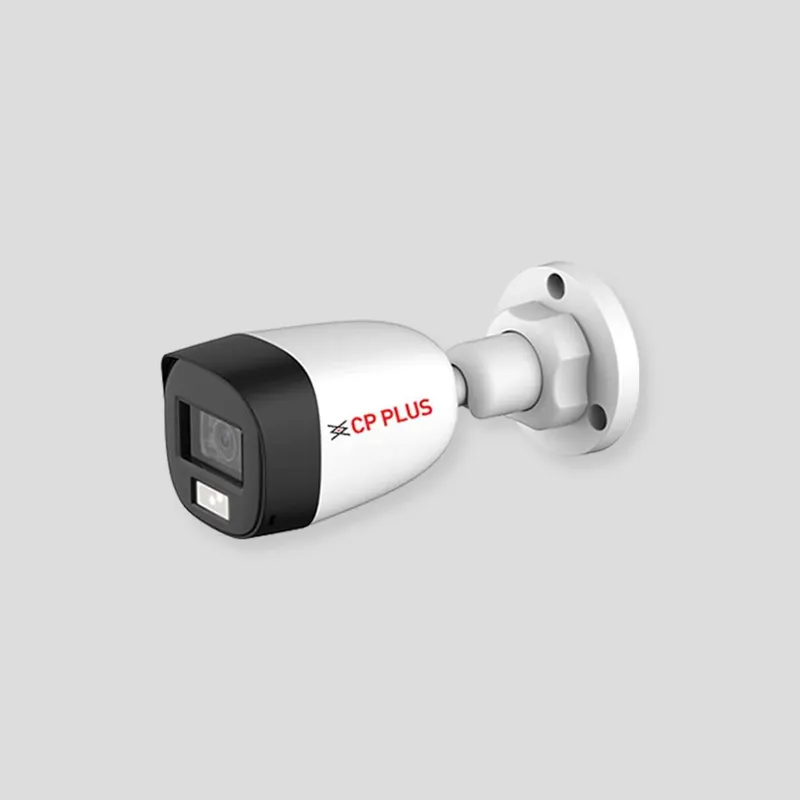

BodyType Bullet
Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Max Aperture F1.6
White Balance Auto/Manual
Lens Type Fixed
Lens 3.6mm
Gain Control (AGC) Auto/Manual
DORI Distance 3.6mm: 80m(Detect), 32m(Observe), 16m(Recognize), 8m(Identify)
Angle of View 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical)
S/N Ratio >65dB
Back Light Comp .BLC/ HLC/ DWDR
Video Streaming CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps; AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30fps CVBS: PAL: 960H; NTSC: 960H
