Product description

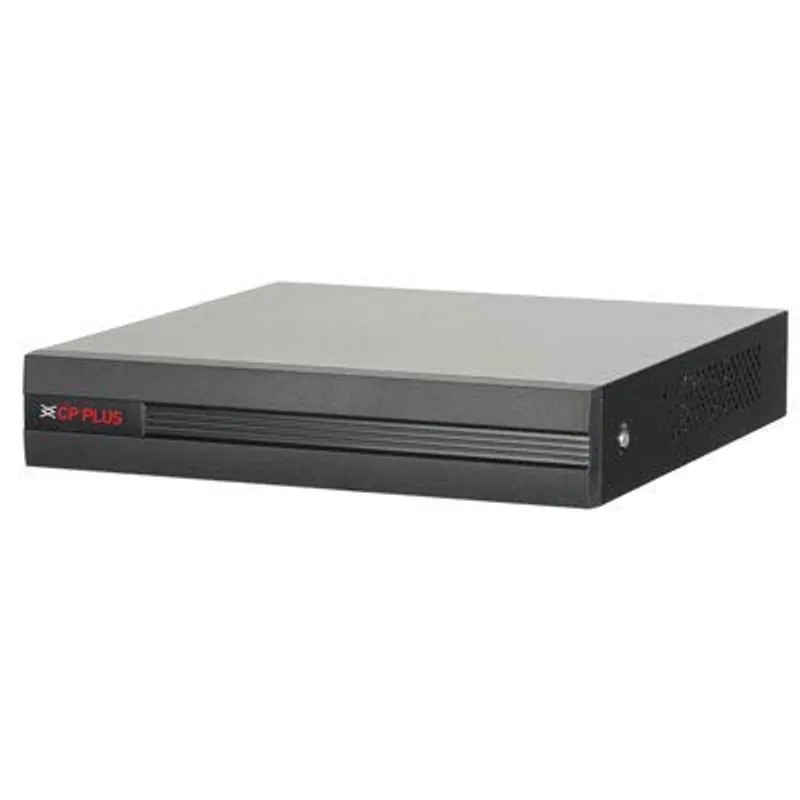

CP-UNR-216F1-V3 16 Ch. H.265 Network Video Recorder Support 16 Channel IP Camera Input H.265/H.264 dual codec decoding Up to 8MP resolution preview and playback Max 160Mbps incoming bandwidth Support 1 SATA HDDs up to 6TB, 2 USB ports(2.0) HDMI / VGA simultaneous video output Support Multi-brand network cameras ONVIF Version 2.4 conformance Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro ProcessorDual-core embedded processor Operating SystemEmbedded LINUX IP Camera Input16 channel Two-way Talk1 channel Input, 1 channel Output, RCA User InterfaceGUI Video Output1 HDMI, 1 VGA Video Resolution1920×1080, 1280×1024, 1280×720, 1024×768 Video RecordingMax 160 Mbps, 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc. Video Display Split1/4/8/9/16 Channel16 Bandwidth Incoming160 Motion DetectionMD Zones: 396(22×18). Video LossSupports Smart PhoneiPhone, iPad, Android Phone Hard Disk1 SATA III ports, up to 6TB Trigger EventsRecording, PTZ, Tour, Video Push, Snapshot, and Screen Tips Raid Support No Recording Mode Manual, Schedule(Regular(Continuous), MD, Stop Search Mode Time/Date, MD & Exact search (accurate to second) Backup Mode USB Device / Network Playback Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom Max User Account 128 users Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Ethernet 1 RJ-45 port (10/100/1000 Mbps) Interface Ports1 HDMI, 1 VGA, 2 USB Ports(1 Rear USB2.0, 1 Front USB2.0) Protocols HTTP/ HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search, ONVIF 2.4, SDK, CGI Redunant Power No Power Supply DC12V/2A Power Consumption<3 W (without HDD) Working Temp-10 ~+55°C / 10~90%RH / 86~106 kpa Dimension 260 mm x 224.9 mm x 47.6 mm Weight 0.8 kg (without HDD).
